Description

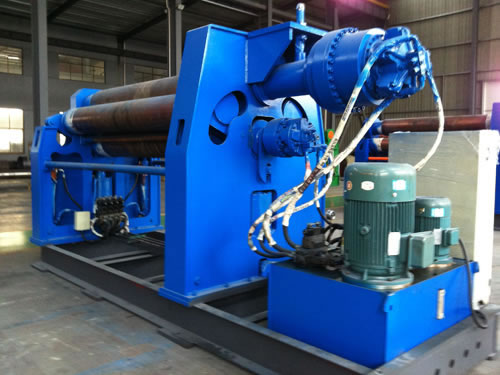

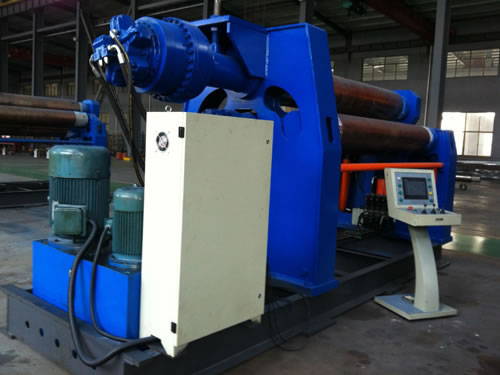

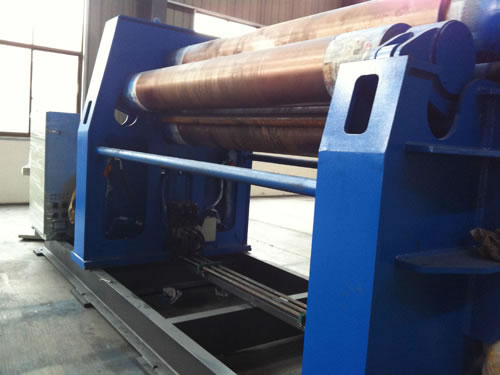

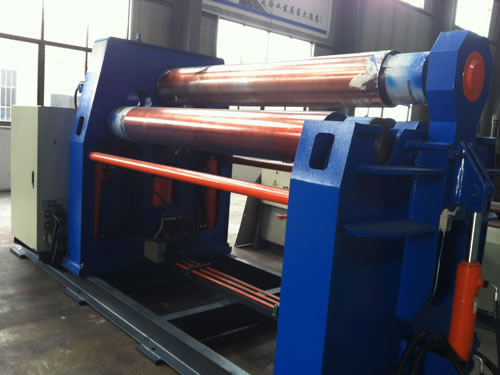

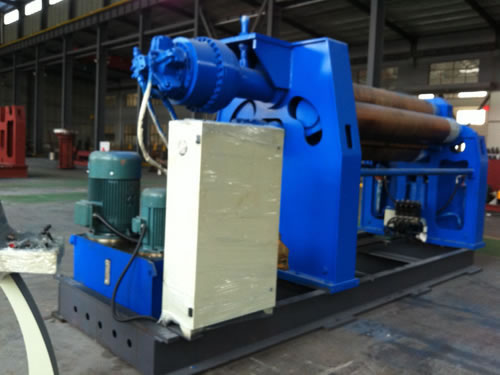

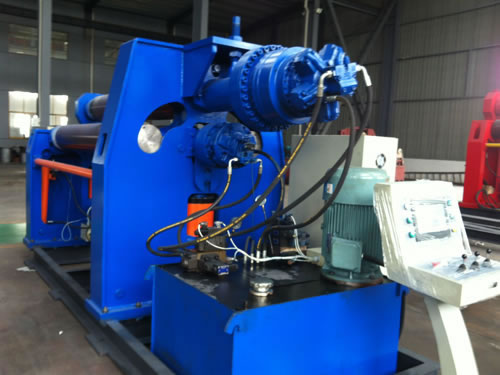

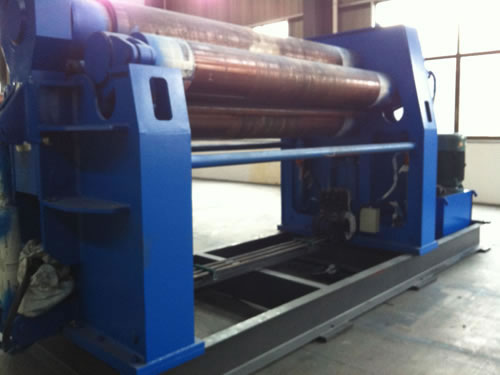

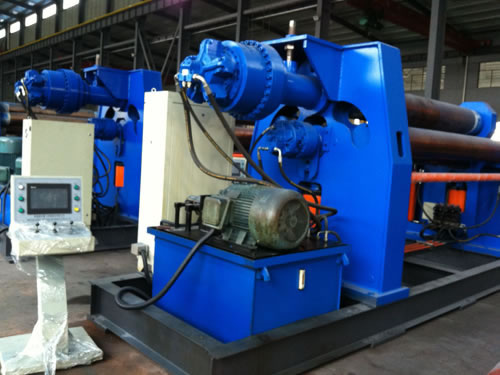

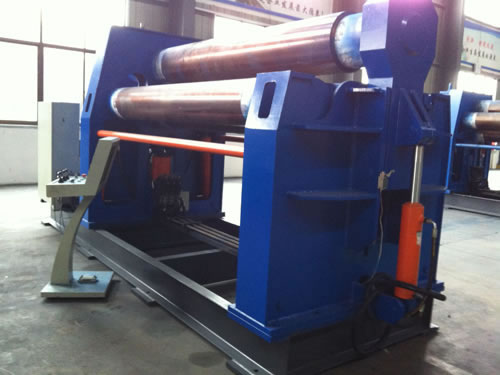

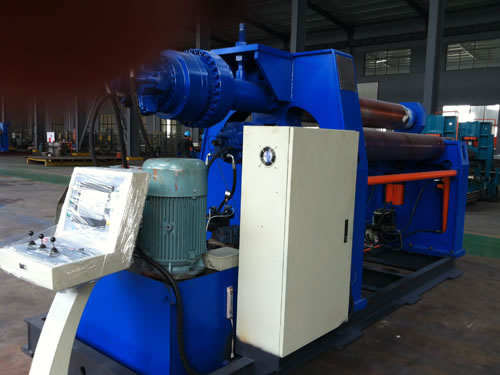

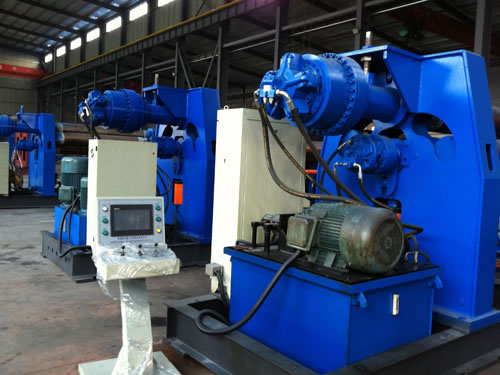

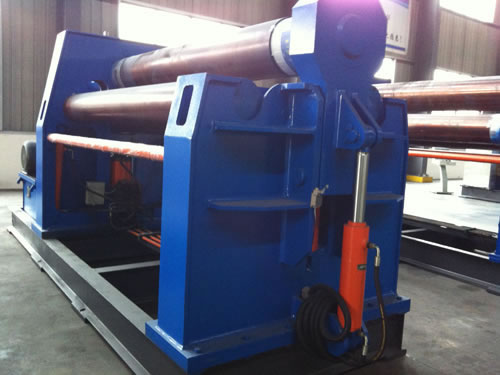

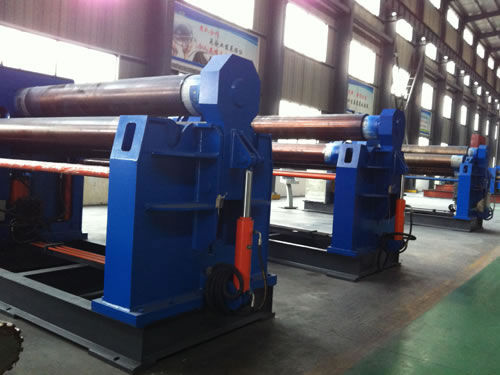

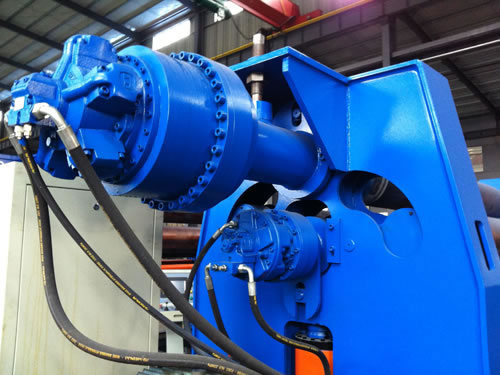

CNC four roller plate rolling machine is a kind of CNC plate bending machine. It adopts the four-roller structure with the upper roll as the main drive. The lower roll makes vertical movement and imposes a force on the position through the hydraulic oil in the hydraulic cylinder so as to clamp the plate tightly. Side rollers are arranged on the two sides of the lower roll to make inclining movement along the guide rail, and to provide drive through the screw, the nut, the worm and the lead screw. The main structure of the CNC plate bending machine (CNC four roller plate rolling machine) includes upper roll, lower roll, side roller, downturn system, left and right side frames, chassis, balance system, hydraulic system and electrical control system.
Specification
1. CNC plate bending machine is a hydraulic-driven machine with high efficiency (driving power is about 60% of the traditional one.)
2. CNC four roller plate rolling machine adopts permanent lubrication technology. During the bearing life period, it doesn't need refueling.
3. Clamping pressure is adjustable. There is non-existent skidding. The productivity is 50% to 80% more than three roller plate rolling machine.
4. The rolling diameter of this CNC four roller plate rolling machine (CNC plate bending machine) can realize 1.1 times of the top roll.
Advantages
-
The CNC machine thoroughly solves the problem of only driving the upper roll and the difficulty of rolling thinner stave.
-
The preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.
-
CNC four roller plate rolling machine is with clear interface with simple, convenient and precise operation.
-
This CNC plate bending machine can realize greater declivity of the upper roller and side roller through the change of roller and then roll conical barrel with huger coning.
-
It is a kind of product that can make customers obtain high production efficiency, reliability and competitiveness.
Technical Parameters of CNC Four Roller Plate Rolling Machine
|
Model
|
Upper Roll Diameter φ(mm)
|
Lower Roll Diameter φ(mm)
|
Side Roller Diameter φ(mm)
|
Motor Power (kw)
|
|
W12CNC-4×2000
|
160
|
140
|
120
|
2.2
|
|
W12 CNC -6×2000
|
190
|
170
|
150
|
3
|
|
W12 CNC -8×2000
|
210
|
190
|
170
|
7.5
|
|
W12 CNC -10×2000
|
230
|
210
|
180
|
7.5
|
|
W12 CNC -13×2000
|
270
|
250
|
210
|
11
|
|
W12 CNC -16×2000
|
300
|
270
|
210
|
11
|
|
W12 CNC -20×2000
|
330
|
300
|
340
|
11
|
|
W12 CNC -25×2000
|
360
|
330
|
250
|
15
|
|
W12 CNC -30×2000
|
390
|
360
|
300
|
22
|
|
W12 CNC -6×2500
|
190
|
170
|
150
|
3
|
|
W12 CNC -8×2500
|
210
|
190
|
170
|
7.5
|
|
W12 CNC -10×2500
|
230
|
210
|
190
|
7.5
|
|
W12 CNC -13×2500
|
270
|
250
|
210
|
11
|
|
W12 CNC -16×2500
|
300
|
270
|
210
|
11
|
|
W12 CNC -20×2500
|
330
|
300
|
240
|
11
|
|
W12 CNC -25×2500
|
360
|
330
|
250
|
15
|
|
W12 CNC -30×2500
|
390
|
360
|
300
|
18.5
|
|
W12 CNC -4×3000
|
210
|
190
|
170
|
7.5
|
|
W12 CNC -8×3000
|
230
|
210
|
190
|
7.5
|
|
W12 CNC -10×3000
|
270
|
250
|
210
|
11
|
|
W12 CNC -13×3000
|
300
|
270
|
210
|
11
|
|
W12 CNC -16×3000
|
330
|
300
|
240
|
11
|
|
W12 CNC -20×3000
|
360
|
330
|
250
|
15
|
|
W12 CNC -25×3000
|
390
|
360
|
300
|
18.5
|
|
W12 CNC -30×3000
|
430
|
390
|
330
|
22
|
Main Standard Parts of CNC Plate Bending Machine
|
Title
|
Positioning
|
|
Axletree
|
ZWZ
|
|
Main Electrical Components
|
Schneider
|

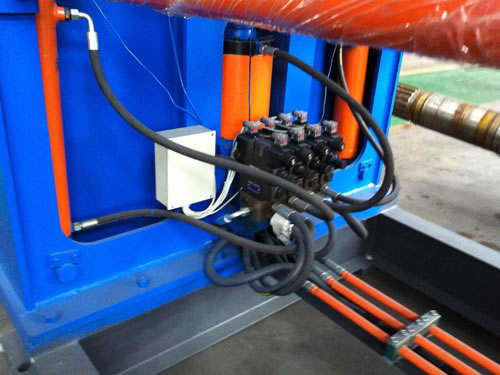

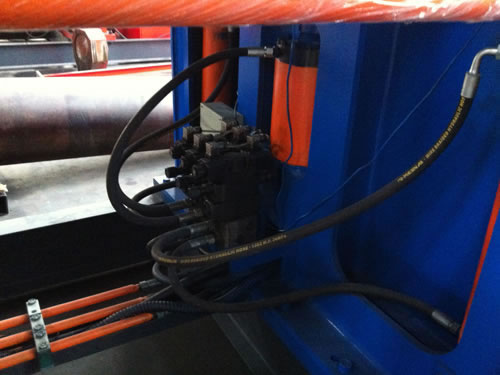

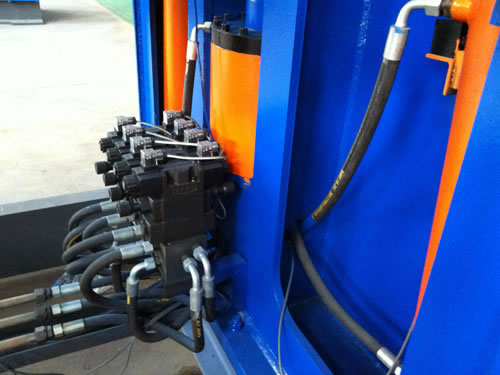

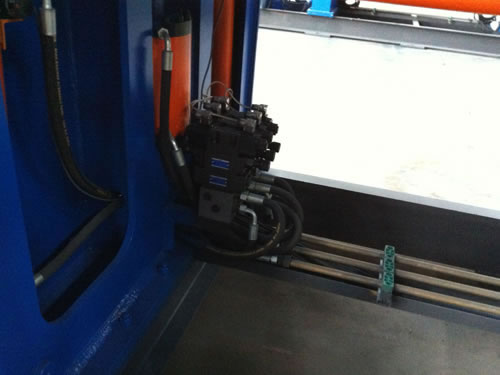

Hydraulic
System
|
Pump
|
HCHC
|
|
Valve
|
Yuken
|
Digital
Display
System
|
Touch Screen
|
DELTA
|
|
PLC
|
DELTA
|
|
Transducer
|
OMRON
|
