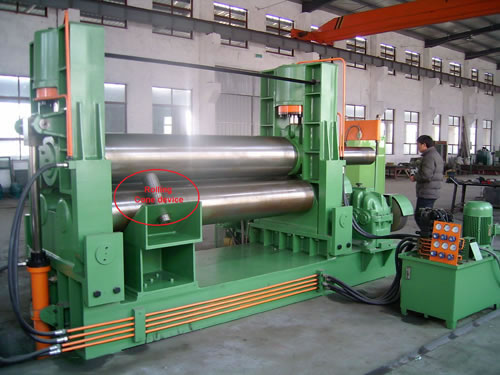

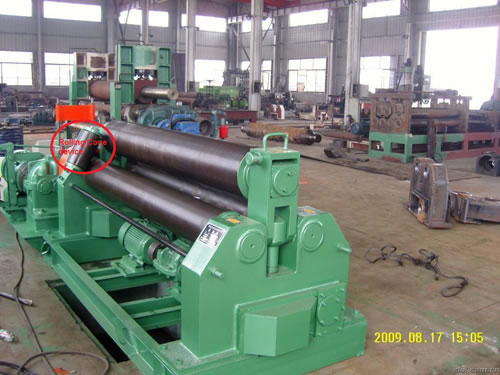

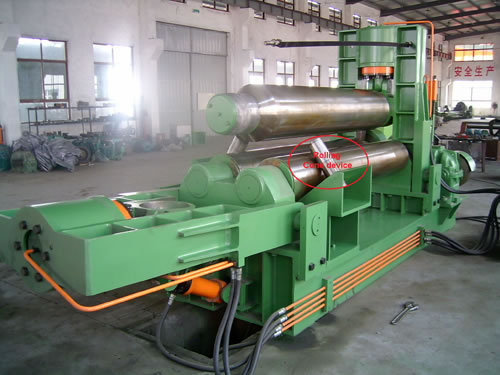

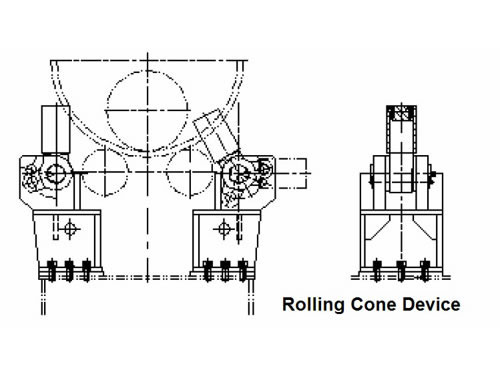

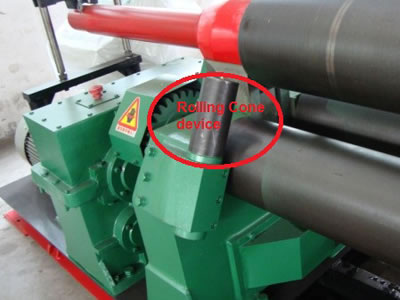

Three Roller Cone Plate Rolling Machine

Description

Three roller cone plate rolling machine can bend metal sheets with high productivity and good precision. This 3 roller cone bending machine is able to make complex shapes into corresponding dies by repetitious bending work. HB Machinery is a professional manufacturer and supplier of cone rolling machines in China. In addition to this plate rolling machine, we also provide rolling machine, leveling machine, shearing machine, press brake, profile bending machine, etc. Our 3 roller cone bending machines are well received by customers all over the world.

Features

• The straight edge length can be set freely and the upper roll is pre-bending.
• Three roller cone plate rolling machine features high precision end bending.
• The 3 roller cone bending machine works with good accuracy. It can bend continuously whether the plate is thin or thick.
• Parameters are controlled by NC, which improves the productivity greatly. It is easy and convenient for operation.
• The lower rolls of this plate rolling machine are fixed and the upper rolls move vertically and horizontally. This bending machine is much safer.
• This 3 roller cone bending machine owns friendly human-computer interface. The working pressure of hydraulic system and cylinder, motor working condition and sensor displacement can be displayed on it. It can also display hydraulic valve power loss condition, soft and hard limit hint, equipment overload alarm, oil temperature alarm and cooling tip.

Technical Parameters of Three Roller Cone Plate Rolling Machine

Model	Pressure on the Upper Roll	Roll Capacity		Diameter of Upper Roll	Diameter of Lower Roll	Central Distance	Main Motor (kw)	Roll Cone Angle
		End (mm)	Central(mm)
W11S-10×1500	37	8	10	205	135	180	4	≤30°
W11S-12×2000	65	10	12	250	145	200	5.5	≤30°
W11S-16×2500	100	12	16	300	165	270	11	≤30°
W11S-20×3000	160	16	20	375	200	330	18.5	≤30°
W11S-25×2500	190	20	25	380	220	360	18.5	≤30°
W11S-30×2500	230	25	30	410	235	380	22	≤30°
W11S-35×3000	320	30	35	500	260	420	37	≤30°
W11S-40×3500	430	35	40	550	275	460	45	≤30°
W11S-45×2500	430	40	45	520	275	460	45	≤30°
W11S-50×3500	540	45	50	630	340	610	55	≤30°
W11S-55×3000	610	45	55	620	360	650	55	≤30°
W11S-60×4000	760	50	60	780	380	700	75	≤30°
W11S-65×3000	760	55	65	700	380	700	75	≤30°
W11S-70×4000	1000	65	70	820	440	820	75	≤30°
W11S-75×3500	1000	65	75	780	440	820	75	≤30°
W11S-80×3000	1000	70	80	770	440	820	75	≤30°
W11S-90×4000	1350	80	90	910	480	920	90	≤30°
W11S-100×3000	1250	85	100	820	480	920	90	≤30°
W11S-110×3500	1400	95	110	940	520	1000	110	≤30°
W11S-120×3000	1600	100	120	900	520	1000	110	≤30°
W11S-140×3000	2200	120	140	960	620	1200	75×2	≤30°

Main Standard Parts

Title		Positioning
Axletree		ZWZ
Main Electrical Components		Schneider
Hydraulic System	Pump	HCHC
	Valve	Yuken
Digital Display System	Touch Screen	DELTA
	PLC	DELTA
	Transducer	OMRON

After-Sale Service

• HB three roller cone plate rolling machine has one year warranty time.
• Within the warranty time, we will reply within 24 hours if there is any big failure.
• Our company can provide free service for repair and maintenance for this 3 roller cone bending machine during the warranty time.
• Any spare part for clients' rolling machine is available in our company. The changed parts' warranty will be from the date when they are changed.
