Description

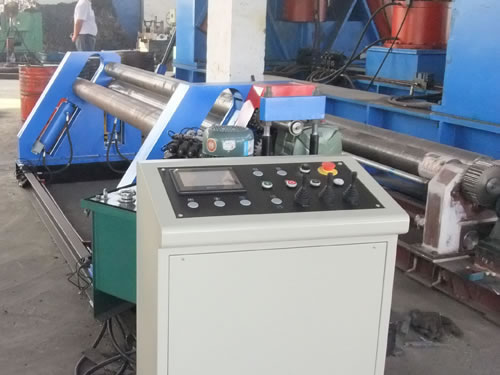

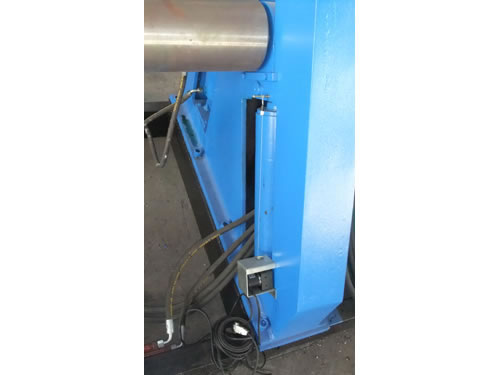

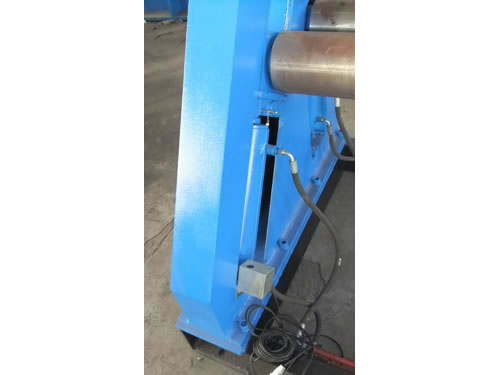

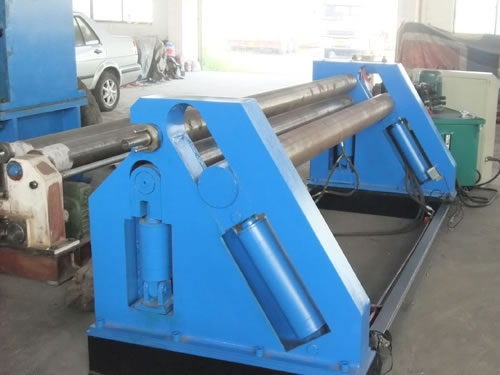

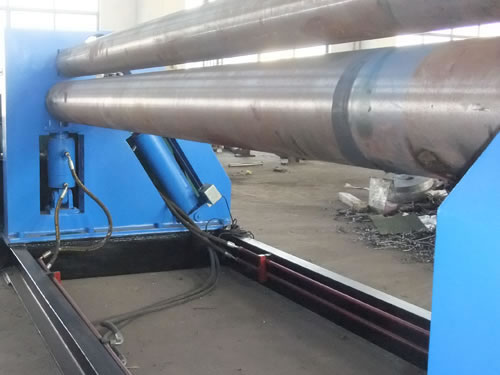

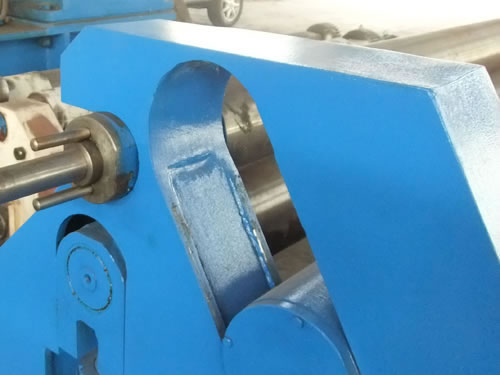

The hydraulic asymmetrical roller bending machine is a kind of hydraulic plate rolling machine in the form of three roller asymmetry. The upper roll is used as the main drive. The lower roll moves vertically to clamp plates tightly. It has dual function of pre-bending and rolling. The machine uses the hydraulic oil in hydraulic cylinder to make piston rod drive the work rolls do up and down movement. This hydraulic plate rolling machine is designed for rolling light or medium plates. HB manufactures a wide variety of hydraulic asymmetrical roller bending machines that have unique designs and features. Our rolling machines employ the latest technology to handle a broad range of materials without any difficulty. Our hydraulic plate rolling machines are highly demanded by the chemical industry, shipbuilding industry, water treatment plant, power plant, petroleum industry, etc.
Operation of Hydraulic Asymmetrical Roller Bending Machine
-

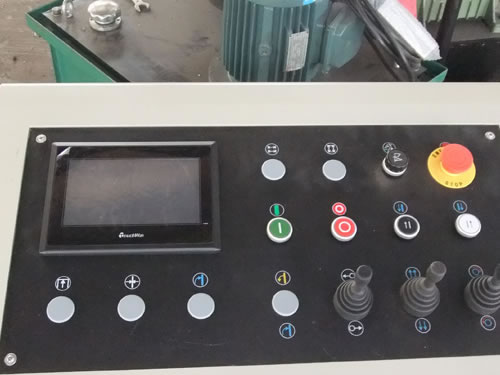

Turn on the power, press the control switch button and start the oil pump.
-
Feed the plate between the hydraulic plate rolling machine's upper roll and lower roll, and then make the lower roll handle up to clamp the plate.
-
Make the side roller of this asymmetrical roller bending machine handle up to adjust the required plate radian.
-
After rolling, make the lower roll and side roller down to zero position, and then adjust exit side axle sleeve position to take out the finished product.
Parameters of Asymmetrical Hydraulic Plate Rolling Machine
|
Model
|
Max. Plate Thickness
|
Max. Plate Width
|
Upper
Roll
Diameter
|
Lower
Roll
Diameter
|
Center Distance
|
Motor
Power
|
Overall Dimension
(L×W×H)
|
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kw
|
mm
|
|
W11F-6×1500
|
6
|
1500
|
160
|
140
|
220
|
4
|
3129×850×1100
|
|
W11F-6×2000
|
6
|
200
|
170
|
160
|
260
|
5.5
|
3629×850×1270
|
|
W11F-6×3200
|
6
|
3200
|
220
|
180
|
280
|
7.5
|
3829×850×1270
|
|
W11F-8×2000
|
8
|
2000
|
185
|
170
|
260
|
5.5
|
3791×1169×1272
|
|
W11F-8×2500
|
8
|
2500
|
240
|
180
|
280
|
7.5
|
4300×1169×1272
|
|
W11F-12×2000
|
12
|
2000
|
240
|
180
|
280
|
11
|
5300×1400×1400
|
|
W11F-12×3000
|
12
|
3000
|
280
|
240
|
360
|
11
|
4800×1400×1400
|
|
W11F-16×2000
|
16
|
2000
|
260
|
220
|
320
|
11
|
4300×1400×1400
|
|
W11F-16×3200
|
16
|
3200
|
340
|
260
|
430
|
18.5
|
5280×1425×1962
|
|
W11F-20×2500
|
20
|
2500
|
340
|
260
|
430
|
18.5
|
5780×1425×1962
|
|
W11F-25×2500
|
25
|
2500
|
370
|
270
|
480
|
22
|
6480×1425×1962
|
HB Machinery is a professional manufacturer and supplier of asymmetrical hydraulic plate rolling machines in China. In addition to this asymmetrical roller bending machine, we also provide cut-to-length line, leveling machine, shearing machine, press brake, profile bending machine, etc. Our hydraulic plate bending machines are well received by customers all over the world.
