Description

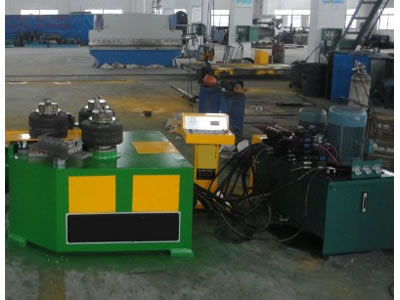

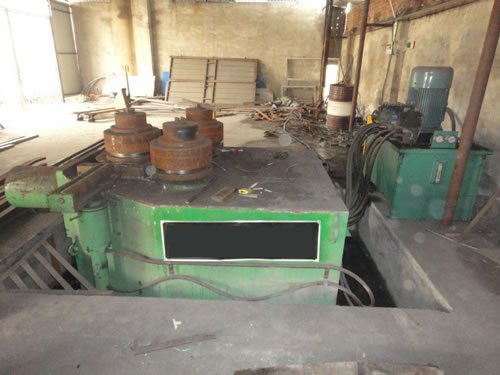

The hydraulic profile bending machine is a special device that can bend various kinds of profiles into arc workpieces. This three roller symmetrical bending machinery adopts vertical or horizontal structure. It is extensively used in petroleum, chemical, shipbuilding, water and electricity, metal structure, machinery manufacturing, etc. Hydraulic profile bending machine mainly consists of bed, lower roll, carrier roller, mechanical transmission parts, electrical parts, hydraulic system, mould, and so on. In addition to this three roller symmetrical bending machinery, our company also offers CNC profile bending machine.
Specifications
-

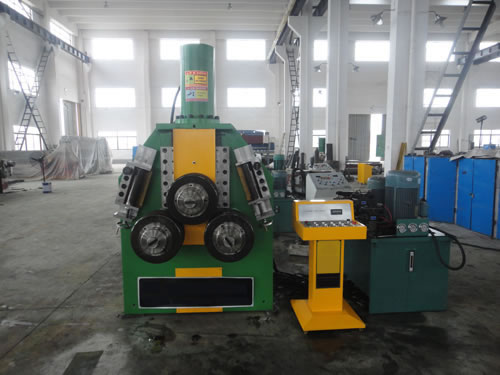

The hydraulic profile bending machine is produced by adopting Swedish company technology. The structure features two fixed lower rolls. The mechanical transmission and the upper roll going up and down belong to hydraulic transmission. This three roller symmetrical bending machinery possesses mechanical rollers on the both sides of the work rolls.
-
The hydraulic profile bending machine has sufficient strength and stiffness to finish bending profiles within the bending machine capacity.
-
It can bend angle steel, flat steel, square steel, channel steel, round steel, steel pipe and other profiles.
-

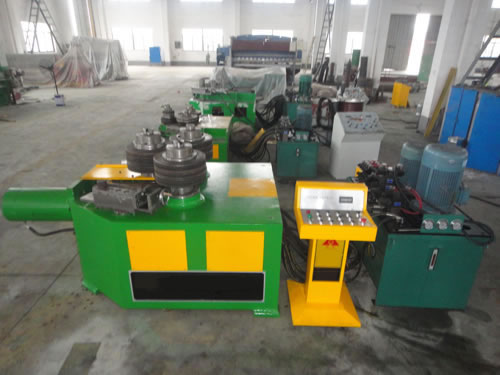

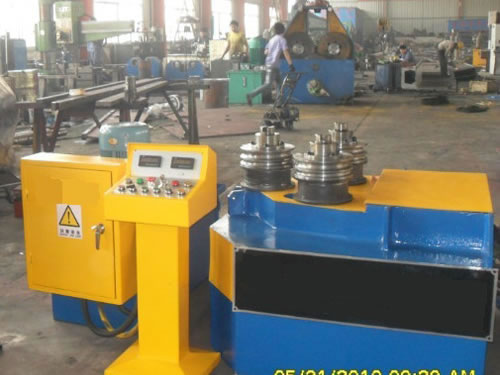

This three roller symmetrical bending machinery is equipped with an independent operation bench providing convenient operation. Its bed adopts steel plate welded structure and eliminates internal stress through annealing.
-
The hydraulic profile bending machine adopts advanced structure and features reliable operation, small size and multiple function.
-
It is a kind of advanced profile molding equipment both at home and abroad.
Technical Parameters
|
Model
|
W24S
|
W24S-6
|
W24S-16
|
W24S-30
|
W24S-45
|
W24S-75
|
W24S-100
|
The Modulus of Elasticity in Static Bending
|
6
|
16
|
30
|
45
|
75
|
100
|
Rolling Speed(m/min)
|
6
|
5
|
Yield Limit(Mpa)
|
△S=250
|
Angle Steel Inturn
|
|
Max. section(mm)
|
40×5
|
70×8
|
80×8
|
90×10
|
100×10
|
120×12
|
Min. u-bend dia.(mm)
|
800
|
1000
|
1200
|
1500
|
2000
|
2500
|
Min. section(mm)
|
20×3
|
30×3
|
35×3
|
36×5
|
38×4
|
40×5
|
Min. u-bend dia.(mm)
|
400
|
550
|
560
|
600
|
600
|
720
|
Angle Steel Outturn
|
|
Max. section(mm)
|
50×5
|
80×8
|
90×10
|
100×10
|
120×12
|
140×16
|
Min. u-bend dia.(mm)
|
800
|
1000
|
1100
|
1300
|
1600
|
1800
|
Min. section(mm)
|
20×3
|
30×3
|
35×3
|
36×5
|
38×4
|
45×5
|
Min. u-bend dia.(mm)
|
400
|
550
|
500
|
600
|
700
|
760
|
Channel Steel Inturn
|
|
Channel steel model
|
8
|
12
|
16
|
20
|
25
|
28
|
Min. u-bend dia.(mm)
|
600
|
800
|
800
|
1000
|
1100
|
1700
|
Channel Steel Outturn
|
|
Channel steel model
|
8
|
12
|
16
|
20
|
25
|
28
|
Min. u-bend dia.(mm)
|
700
|
800
|
1000
|
1150
|
1600
|
1700
|
Flat Steel Bend Horizontally
|
|
Max. section(mm)
|
100×18
|
150×25
|
180×25
|
200×30
|
220×40
|
250×40
|
Min. u-bend dia.(mm)
|
600
|
700
|
800
|
900
|
1000
|
1200
|
Flat Steel Bend Vertically
|
|
Max. section(mm)
|
50x12
|
75x16
|
90x20
|
100×25
|
110x40
|
120x40
|
Min. u-bend dia.(mm)
|
500
|
760
|
800
|
1000
|
1100
|
1300
|
Steel Pipe
|
|
Max. section(mm)
|
42×4
|
76×4.5
|
89×5
|
89×8
|
114×5
|
159×5
|
Min. u-bend dia.(mm)
|
500
|
750
|
900
|
900
|
1200
|
2000
|
Steel Rod
|
|
Max. section(mm)
|
38
|
52
|
62
|
75
|
85
|
90
|
Min. u-bend dia.(mm)
|
450
|
600
|
600
|
800
|
1000
|
1100
|
Square Tube
|
|
Max. section(mm)
|
45×3
|
60×4
|
70×4
|
80×6
|
90×8
|
100×10
|
Min. u-bend dia.(mm)
|
750
|
900
|
1000
|
1200
|
1600
|
2000
|
Model
|
W24S
|
W24S-140
|
W24S-180
|
W24S-260
|
W24S-320
|
W24S-400
|
W24S-500
|
The Modulus of Elasticity in Static Bending
|
140
|
180
|
260
|
320
|
400
|
500
|
Rolling Speed(m/min)
|
5
|
4
|
Yield Limit(Mpa)
|
△S=250
|
Angle Steel Inturn
|
|
Max. section(mm)
|
140×16
|
150×16
|
160×16
|
180×14
|
200×18
|
200×20
|
Min. u-bend dia.(mm)
|
2400
|
2600
|
2600
|
3600
|
3600
|
4000
|
Min. section(mm)
|
50×5
|
50×6
|
60×6
|
70×6
|
75×6
|
85×6
|
Min. u-bend dia.(mm)
|
1000
|
1200
|
1200
|
1500
|
1400
|
1600
|
Angle Steel Outturn
|
|
Max. section(mm)
|
150×16
|
160×16
|
180×14
|
200×15
|
200×24
|
250×25
|
Min. u-bend dia.(mm)
|
2200
|
2000
|
2500
|
3600
|
3600
|
4000
|
Min. section(mm)
|
50×5
|
50×6
|
60×6
|
70×6
|
75×6
|
85×6
|
Min. u-bend dia.(mm)
|
800
|
1000
|
1000
|
1300
|
1500
|
1600
|
 Channel Steel Inturn
|
|
Channel steel model
|
30
|
32
|
36
|
40
|
45
|
50
|
Min. u-bend dia.(mm)
|
1200
|
1500
|
1800
|
2000
|
2000
|
2400
|
 Channel Steel Outturn
|
|
Channel steel model
|
30
|
32
|
36
|
40
|
45
|
50
|
Min. u-bend dia.(mm)
|
1700
|
1800
|
1800
|
2000
|
2000
|
2400
|
Flat Steel Bend Horizontally
|
|
Max. section(mm)
|
280×50
|
300×50
|
330×50
|
360×60
|
400×75
|
500×76
|
Min. u-bend dia.(mm)
|
1300
|
1500
|
1900
|
2000
|
2400
|
2400
|
Flat Steel Bend Vertically
|
|
Max. section(mm)
|
150x40
|
180×30
|
190×40
|
190×50
|
200x50
|
200×60
|
Min. u-bend dia.(mm)
|
1500
|
2000
|
2000
|
2400
|
2200
|
2500
|
Steel Pipe
|
|
Max. section(mm)
|
168×6
|
168×8
|
219×8
|
245×8
|
273×8
|
323×10
|
Min. u-bend dia.(mm)
|
2000
|
2000
|
3500
|
3000
|
3500
|
4200
|
Steel Rod
|
|
Max. section(mm)
|
100
|
110
|
120
|
135
|
150
|
160
|
min. u-bend dia.(mm)
|
1200
|
1300
|
1350
|
1800
|
2000
|
2000
|
Square Tube
|
|
Max. section(mm)
|
125×10
|
140×10
|
150×10
|
165×10
|
180×12
|
200×12
|
Min. u-bend dia.(mm)
|
2500
|
3000
|
3000
|
3500
|
3500
|
5000
|
