Description

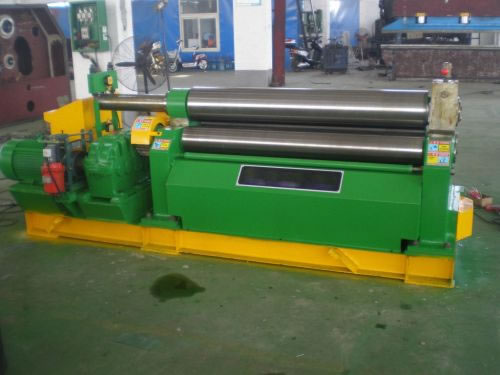

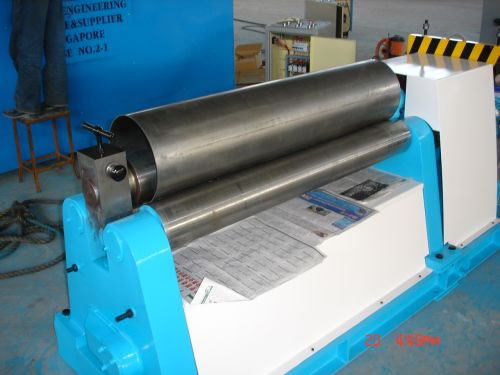

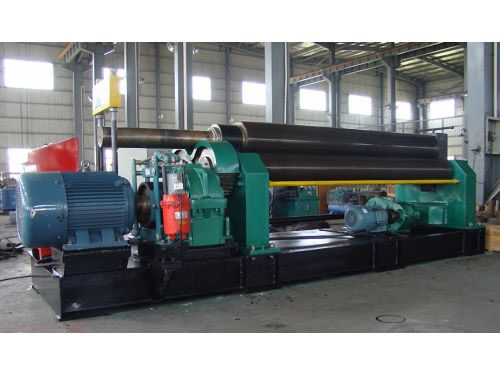

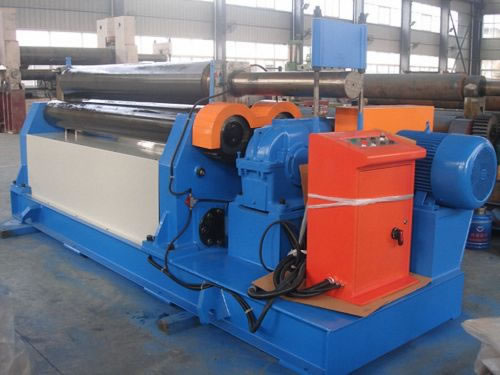

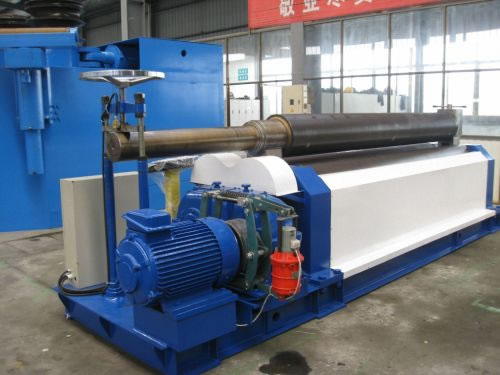

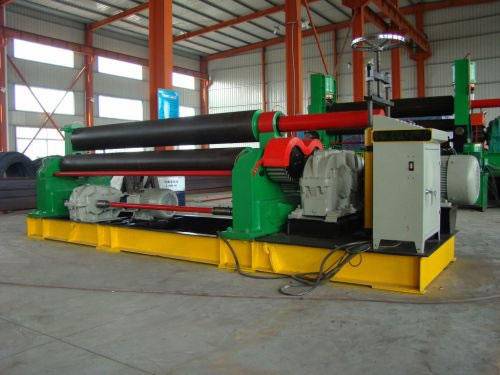

Mechanical symmetrical rolling machine is a kind of three roller asymmetric rolling equipment. The upper roll moves vertically in the center between the two lower rolls. The two lower rolls rotate and provide the plate materials with torque. The mechanical plate bending machinery consists of two parts, the operation part and the transmission part which are welded at the whole bottom pallet. It features compact structure, easy operation and convenient maintenance. Mechanical symmetrical rolling machine is mainly used in the process of cold working in which the sheets within the thickness of 12 mm can be bent into cylindrical tubes with different diameters. The mechanical plate bending machinery is widely used in boiler, chemical industry, mining, construction, shipbuilding and other machinery industries.
Features
-
HB mechanical symmetrical rolling machines have gained CE certification.
-
This mechanical plate bending machinery is characterized by high efficiency, good sale and competitive price, easy operation and maintenance, good after-sale service, etc.
-
Electrical parts adopt famous apparatus with steady performance, durable, safe, reliable and convenient operation.
-
Another important feature to increase the versatility of the mechanical symmetrical rolling machine is the roll shaft extensions to allow dies to be fitted to bend profiles and pipes.
-
The ultra wide roll support with lubrication circuit is mounted within linear slides to prevent wear and tear of this mechanical plate bending machinery.
Parameters of Mechanical Symmetrical Rolling Machine
|
Model
|
Thickness of Roller Plate
|
Diameter of Upper Roll
|
Diameter of Bottom Roll
|
Center Distance
|
Main Motor
|
Rolling Motor Power
|
|
|
mm
|
mm
|
mm
|
mm
|
kw
|
kw
|
|
W11-6×2000
|
6
|
170
|
160
|
260
|
5.5
|
2.2
|
|
W11-8×1500
|
8
|
170
|
160
|
260
|
5.5
|
2.2
|
|
W11-8×2000
|
8
|
185
|
170
|
260
|
5.5
|
3
|
|
W11-10×1500
|
10
|
185
|
170
|
260
|
5.5
|
3
|
|
W11-10×2000
|
10
|
235
|
180
|
280
|
7.5
|
4
|
|
W11-10×2500
|
10
|
250
|
180
|
280
|
7.5
|
4
|
|
W11-12×2000
|
12
|
250
|
180
|
280
|
7.5
|
4
|
|
W11-12×2500
|
12
|
260
|
220
|
320
|
7.5
|
4
|
|
W11-12×3000
|
12
|
280
|
240
|
360
|
11
|
5.5
|
|
W11-16×2000
|
16
|
260
|
220
|
320
|
7.5
|
4
|
|
W11-16×2500
|
16
|
280
|
240
|
360
|
11
|
5.5
|
|
W11-16×3000
|
16
|
320
|
260
|
400
|
15
|
7.5
|
|
W11-20×2000
|
20
|
280
|
240
|
360
|
15
|
7.5
|
|
W11-20×2500
|
20
|
340
|
270
|
430
|
18.5
|
11
|
|
W11-20×3000
|
20
|
370
|
270
|
480
|
18.5
|
11
|
|
W11-25×2000
|
25
|
330
|
270
|
480
|
18.5
|
11
|
|
W11-25×2500
|
25
|
360
|
300
|
480
|
22
|
11
|
|
W11-25×3000
|
25
|
400
|
350
|
550
|
30
|
15
|
|
W11-30×2500
|
30
|
400
|
350
|
550
|
30
|
15
|
|
W11-30×3000
|
30
|
450
|
390
|
600
|
30
|
15
|
HB Machinery is a professional manufacturer and supplier of mechanical symmetrical rolling machines in China. In addition to this mechanical plate bending machinery, we also provide cut-to-length line, leveling machine, shearing machine, press brake, profile bending machine, etc. Our rolling machines are well received by customers all over the world.
