Curve Down 3 Roller Plate Rolling Machine

Description

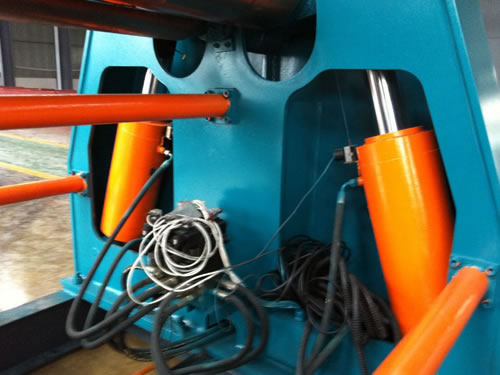

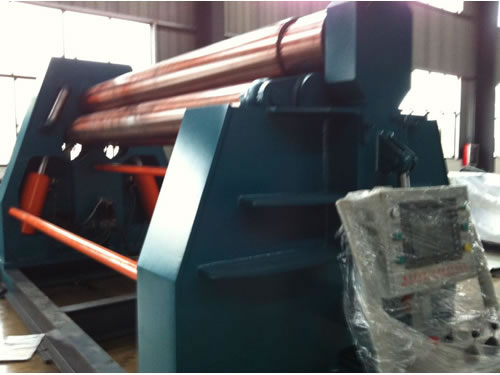

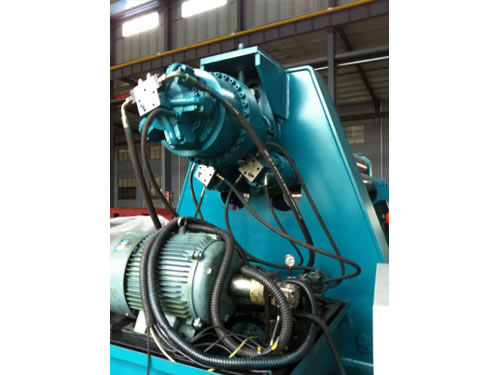

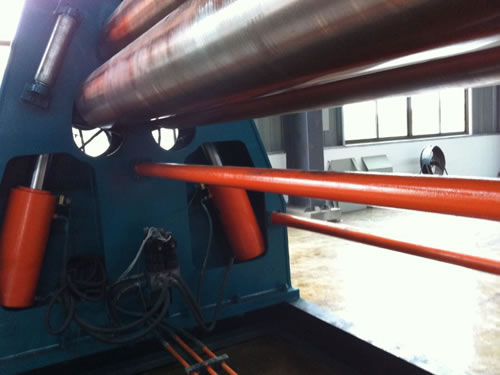

Curve down 3 roller plate rolling machine is also known as arc down-adjusting 3-roller rolling equipment. It has three rolls for the whole drive roller. The planetary gear hydraulic motor provides torque to roller plate. There is no mutual sliding between the work piece and the basic roll. The roller is driven by hydraulic cylinder to do arc up and down movement. This plate rolling machine possesses self-aligning roller bearings. This arc down-adjusting 3-roller rolling equipment has the advantage of feeding without the aid of accessory devices. It is able to complete the pre-deformation of both ends and carry out sheet metal shaping. The main structure of this plate rolling machine includes tip side of the rack, fixed side of the rack, work roll, drive, hydraulic system, electrical control system and other components.

Features

The arc down-adjusting 3-roller rolling equipment features compact structure, easy and reliable operation, easy maintenance and high control accuracy. This plate rolling machine can lift the roller device with digital display. Besides, it is more convenient to disassemble or unload.

After-Sale Service

• The warranty time for this arc down-adjusting 3-roller rolling equipment in our company is one year.
• Within the warranty time, we will reply within 24 hours if there is any big failure.
• Our company can provide free service for repair and maintenance for this plate rolling machine during the warranty time.
• Our company is responsible for any spare parts needed by customers. The changed parts' warranty will be from the date when they are changed.

Main Standard Parts of Arc Down-Adjusting 3-Roller Rolling Equipment

Title		Positioning
Axletree		ZWZ
Main Electrical Components		Schneider
Hydraulic System	Pump	HCHC
	Valve	Yuken
Digital Display System	Touch Screen	DELTA
	PLC	DELTA
	Transducer	OMRON

Technical Parameters of Curve Down Three Roller Rolling Machine

Model	Roll Capacity		Diameter of Upper Roll	Diameter of Lower Roll	Main Motor (kw)
	End (mm)	Central (mm)
W11H-10×1500	8	10	205	165	5.5
W11H-12×2000	10	12	250	185	11
W11H-16×2500	12	16	300	220	18.5
W11H-20×3000	16	20	375	275	18.5
W11H-25×2500	20	25	380	280	22
W11H-30×2500	25	30	410	310	37
W11H-35×3000	30	35	500	410	45
W11H-40×3500	35	40	550	475	45
W11H-45×2500	40	45	520	455	55
W11H-50×3500	45	50	630	540	55
W11H-55×3000	45	55	620	525	75
W11H-60×4000	50	60	780	680	75
W11H-65×3000	55	65	700	595	75
W11H-70×4000	65	70	820	740	90
W11H-75×3500	65	75	780	680	90
W11H-80×3000	70	80	770	675	90
W11H-90×4000	80	90	910	800	110
W11H-100×3000	85	100	820	740	75×2
W11H-110×3500	95	110	940	820	75×2
W11H-120×3000	100	120	900	795	90×2
W11H-140×3000	120	140	960	830	90×2
