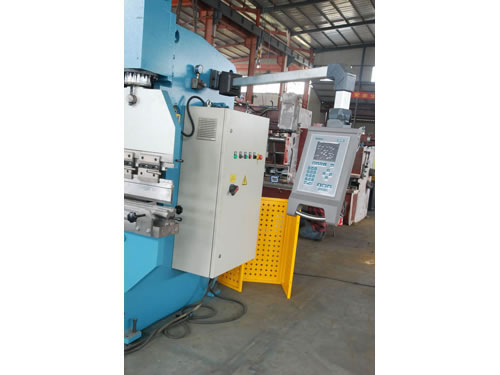

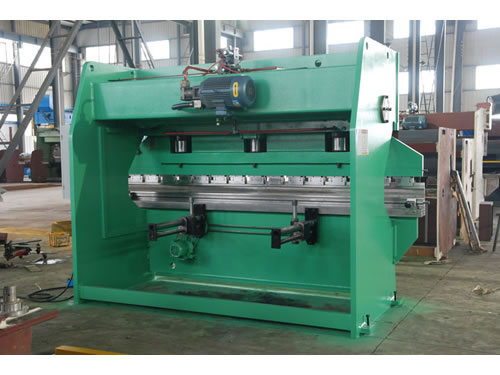

CNC Press Brake

Description

CNC press brake is an electro-hydraulic synchronized double-cylinder CNC bending machine. The bending principle is similar to the angle forming principle of common bending equipment. It can bend different workpieces according to different angles of moulds. The CNC system controls the electro-hydraulic ratio direction valve. CNC press brake can realize bending depth full closed-loop digital control through the grating feedback. CNC bending machine can simply be summed up as a bending machine that controls positioning system, block bending depth and automatic compensation for workbench deformation through CNC system. We also provide hydraulic and tandem press brakes.

Features

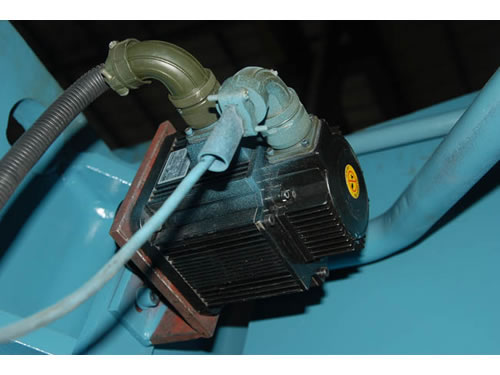

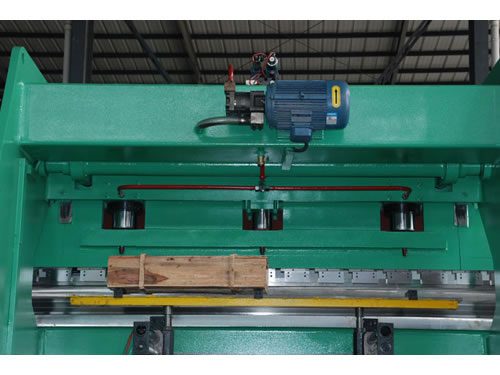

• CNC bending machine is equipped with computer system from Netherlands Delem Company, and imported grating, hydraulic system and servo motor.
• CNC press brake has good performance and strong unbalance loading capability.
• The electronic-hydraulic proportional servo synchronization makes arbitrary point control during stroke. The repeat accuracy can reach ± 0.01 and the parallelism is ± 0.02.
• CNC bending machine (CNC press brake) is featured with small geometric tolerance and high precision. When the rack eliminates stress, the whole machine finishes single clamping processing.

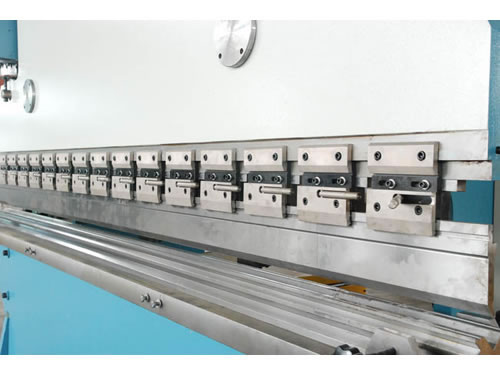

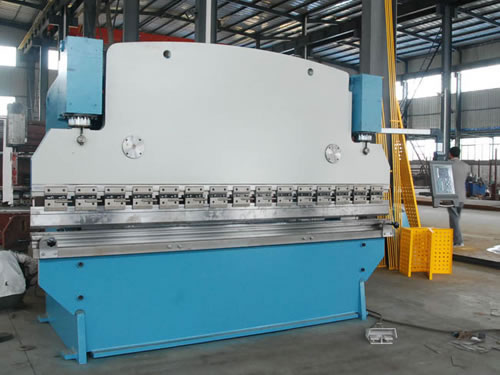

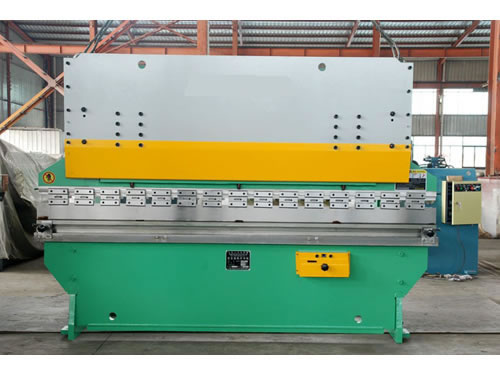

• The lower workbench adopts deflection compensation cylinder, the upper mould is equipped with deflection compensation agency or the lower workbench is installed with manual or automatic deflection compensation device.

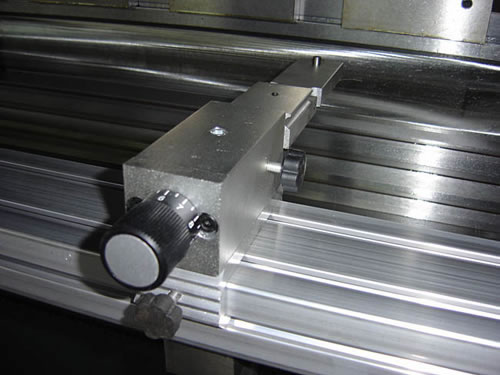

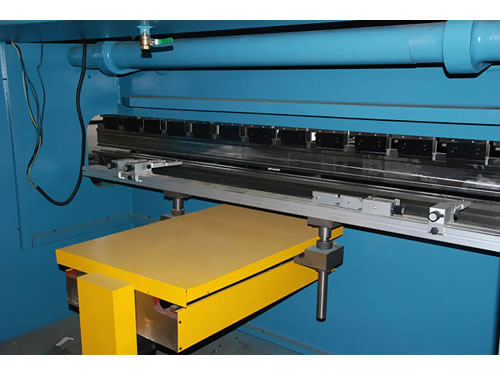

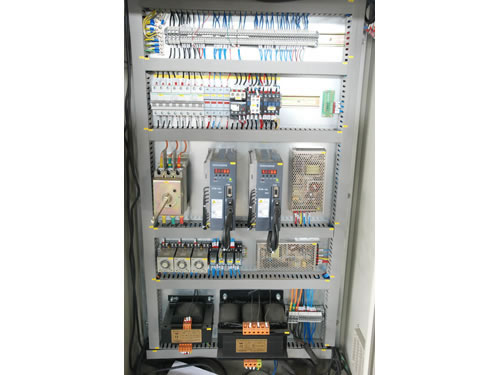

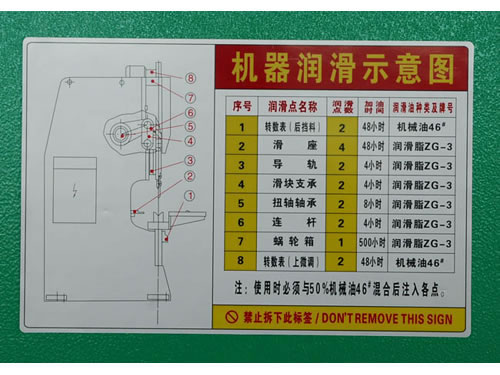

• Slider stroke and back gauge are controlled by computer. The back gauge adopts ball screw and rolling guide with high repeat accuracy.

Technical Parameters of CNC Bending Machine

Model	Nominal Pressure	Length of Workbench	Distance between Stand Columns	Throat Depth	Slider Stroke	Max. Opening Height	Main Motor Power	Overall Dimension L× W × H	Weight
WE67Y-63/3200	630	3200	2700	250	100	400	5.5	4340×1460×2420	6000
WE67Y-100/3200	1000	3200	2700	320	150	450	7.5	3450×1450×2600	8000
WE67Y-160/3200	1600	3200	2700	320	200	465	11	3250×2535×2920	13000
WE67Y-250/3200	2500	3200	2700	400	250	560	15	4000×2250×4060	18400
WE67Y-250/4000	2500	4000	3300	400	250	560	15	4800×2250×4060	20000
WE67Y-250/5000	2500	5000	4100	400	250	560	15	5800×2250×4060	22000
WE67Y-250/7000	2500	7000	6250	400	250	560	15	7800×2250×4160	25000
WE67Y-320/4000	3200	4000	3300	400	250	560	22	4060×2570×4560	22000
WE67Y-320/5000	3200	5000	4300	400	250	560	22	5060×2570×4560	24510
WE67Y-320/6000	3200	6000	5300	400	250	560	22	6060×2570×4560	27020
WE67Y-400/4000	4000	4000	3100	400	320	625	37	4050×3240×3880	29950
WE67Y-400/5000	4000	5000	4210	400	320	625	37	5050×3240×3880	37000
WE67Y-400/6000	4000	6000	5100	400	320	625	37	6050×3240×3880	44050
WE67Y-500/4000	5000	4000	3100	400	320	630	37	4090×2965×5320	32700
WE67Y-500/5000	5000	5000	4100	400	320	630	37	5090×2965×5320	39750
WE67Y-500/6000	5000	6000	5100	400	320	630	37	6090×2965×5320	46800
WE67Y-630/5000	6300	5000	4100	400	320	710	45	5050×4910×3200	67950
WE67Y-630/6000	6300	6000	5100	400	320	710	45	6050×4910×3200	75000
WE67Y-800/5000	8000	8000	6700	350	400	750	55	9500×3000×6050	100000

CNC System of CNC Bending Machine (CNC Press Brake)

DA-41

DA-41 is a special two-axis CNC system for torsion axis synchronization bending machine. Adopting the latest electronic technology, it provides a number of unique solutions for bender slider, back gauge and input/output flexible definition. This system can use servo motor, double-speed AC motor, VVVF and multiple axis control modes. Depending on its application, bi-directional positioning or one-way positioning that can eliminate screw gap. The high-definition LCD display provides clear and easy operation interface. It also owns data programming for inputting angle and mold parameters. Operators can complete full-screen editing through tables. The bending parameters can be selected through a user-friendly operating cursor.

Features: 1. High-definition LCD display 2. Control of slider's stop position 3. Back gauge control 4. Angle programming 5. Set mould parameters 6. Control of escaping material 7. 100 programs 8. Each program with 25 steps 9. Panel mounting 10. Servo control, frequency control and double-speed AC control

DA-51

DA-51 CNC system possesses bending machine's all basic functions, such as Y-axis angle control programming and 4 +1 axis control. With a clear LCD display, the front panel can provide a user-friendly and easy operation interface. DA-51 provides users 500 programs that each program owns program memory space for 25 steps. All the working steps and parameters are sequentially arranged in a list. Each program has an additional page for detail description of molds, material properties and counting. Unique shortcut structure provides the most direct way for programming to ensure a quick and simple product programming. This system spends less programming time and testing time that makes bending machine more effective. The basic control functions include Y1, Y2 and X axis. The second back gauge axis R / Z or X2 axis is optional.

Features: 1. One page programming 2. Optional R axis, Z axis or X-axis 3. Workbench deformation compensation 4. Panel mounting 5. Huge memory space 6. Mould library 7. Servo control, frequency control and AC motor control

DA-52

The integrated DA-52 CNC system can not only be applied to the torsion axis synchronization bending machine control, but also be used to electro-hydraulic synchronization bending machine control. Based on 4-axis control panel mounting structure, it can be mounted directly to a cabinet or in the suspended cabinet. With DELEM friendly user interface and TFT true color LCD display, DA-52 system possesses all the basic functions of bending machine control. Its unique shortcut approach provides a fast and simple programming. Y axis angle programming, crowning compensation and pressure control are all standard fittings. Based on the latest technology, DA-52 system provides a stable and reliable solution. Equipped with a USB interface, it greatly facilitates fast backup of product and mold.

Features: 1. One page fast programming 2. Guide shortcut 3. 6.4 " LCD true color TFT display 4. Max. 4-axis control (Y1, Y2 and two additional axes) 5. Workbench compensation control 6. Mold / material / product library 7. USB interface 8. Panel mounting structure and optional suspension box 9. Advanced Y-axis control algorithm can control closed loop or open loop valve.

DA-56

Integrated DA-56 CNC system has DELEM two-dimensional graphics programming design tools convenient for NC programming. Bending sequence specified function allows the machine to adjust and test work is reduced to a minimum. Press the key once to generate the NC program. This system can automatically calculate the position of all axes and produce directly according to the actual dimension displayed on the screen. During the production process, operators can make use of DA-56 graphic simulation bending procedure to guide operation. The basic system configuration includes Y1-Y2-X-R axis, R-axis, Z or X2 axis. Workbench deformation compensation function is a standard configuration. CNC system adopts the most advanced technology with high flexibility and easy operation. The USB interface provides fast backup of products and moulds. Color TFT display and stylish user interface provides convenience for flash-programming. DA-offline provides solutions for offline programming.

Features: 1. 2D programming 2. 10.4 "LCD TFT color display 3. Determination of bending procedure 4. Calculation of expanded length 5. Workbench deformation compensation 6. USB interface 7. Servo control, frequency control and AC motor control

DA-65W

DA65W CNC system for electro-hydraulic synchronization bending machine adopts modular structure and flexible combination multi-axis system extending up to 20 axes. PLC can reduce circuit design and increase machine's reliability. Electrical design specifications and installation dimensions are in compatible with DA-6X series. With FLASH ROM, it can upgrade system through floppy disk. The full range of anti-collision detection and warning can avoid misoperation. It is a dedicated bending system for automatic process calculation and optimization.

Features: Self-diagnostic function provides detection and diagnosis for all function units. Multilingual choice includes Chinese. This system has 12-inch, four grayscale, VGA display Standard 3.5 " floppy drive and RS232 interface can realize external storage of programs and parameters, and online or offline programming. 2D graphical programming uses different grayscale display to easily identify workpiece, mould and lathe bed. The system possesses 2500 program lines, 90 dies and ten kinds of overall memory capacity. It can automatically calculate the clamping point, mold safe area, bending pressure, unloading distance, workbench deformation compensation, etc. Barcode recognizer interface, ethernet interface, multi-machine interaction and sheet support are optional.

DA-66W

The DA-66W CNC system of the bending machine owns functions of graphical programming, bending procedure calculation and two-dimensional or three-dimensional bending analog. It provides users with unprecedented friendly operator interface that is beneficial to fast programming. Programming on the Delem DA-66W CNC system, each side of products can be fully rendered on the screen. Customers can see two-dimensional or three-dimensional bending image simulation on the screen. Features: 1. The error alert system and help text can provides timely tips when operators operate programs incorrectly or the machine works in failure. This can save a lot of time to find machine errors. 2. Real-time windows system can deal with multitasking and document management. 3. Standard Ethernet interface can simply connect windows network. 4. The USB interface can be easily connected to an external device (keyboard, mouse, etc.). 5. Colorful display screen adopts 12" TFT. 6. 2D graphical CNC system is also used. 7. This system adopts automatic bend sequence. 8. PLC functions are provided by this CNC system. 9. Operation warning system is employed in this DA-66W CNC system.

DA-69W

The DA-69W CNC system for the bending machine owns functions of graphical programming, bending procedure calculation and three-dimensional bending analog. It provides users with unprecedented friendly operator interface that is beneficial to fast programming. Programming on the Delem DA-69W CNC system, each side of products can be fully rendered on the screen. In three-dimensional space, bending expert program will automatically calculate the optimum bending sequence. Customers can also program and process products in three-dimensional space. Features: 1. The error alert system and help text can provides timely tips when operators operate programs incorrectly or the machine works in failure. This can save a lot of time to find machine errors. 2. Real-time windows system can deal with multitasking and document management. 3. Standard Ethernet interface can simply connect windows network. 4. The USB interface can be easily connected to an external device (keyboard, mouse, etc.). 5. Colorful display screen adopts 12" TFT. 6. 3D graphical CNC system is also used. 7. This system adopts automatic bending sequence. 8. PLC functions are provided by this CNC system. 9. Operation warning system is employed in this DA-66W CNC system.

E20

This product absorbs advantages of similar products both at home and abroad, combines domestic cutting and folding equipment application requirements and develops bending device CNC system especially used for Chinese users. It adopts unique drive control technology which ensures work accuracy and reduces the cost of CNC bending machine. This creates conditions for the popularization of press brake CNC. Features: 1. This system can do positioning control for back gauge of bending machine. 2. It owns unidirectional and bidirectional positioning function that can effectively eliminate screw gap. 3. This system has material escape function which can block the interference between feeding device and workpiece, reduce wear and improve positioning accuracy. 4. It possesses automatic or manual search function of reference point. 5. This system has de-energized position memory function. It can protect parameters, locations and programs. 6. It owns fast position teaching function. 7. The multi-step programming function can realize multi-step automatic running, complete the one-time processing of multi-step parts and improve production efficiency. 8. Metric or imperial is optional to meet different users' needs.

E200

Basic Functions: E200 CNC system is based on the E20+ control functions. It adopts high-resolution LCD display and the latest electronic technology. This system is specially used for controlling torsion axis synchronization control bending machine back gauge and die block. One-touch operation of the function switch, customer-friendly operation interface and on-screen information can make customers operate programming, parameter setting and automatic machining operation easier and faster. The patented drive control technology guarantees working accuracy. Main Functions: This system adopts 240 × 128 LCD display. Multi-step time programming can make the program run automatically and complete continuous positioning. The automatic concession function can avoid the interference between back gauge and workpiece. The unidirectional positioning function can eliminate the screw drive gap. Metric or imperial is optional. Chinese and English operating menus are provided by this system. It possesses position automatic compensation function. This system has adequate processing program storage space. It owns power memory function.

E210

E210 is the latest functional torsion axis bending machine control system developed by ESTUN company. It includes all functions of E200 CNC system. The system is equipped with servo motor, servo drive, ball screw, linear guide and imported electric appliances. Main Functions: 1. This system adopts 5.6-inch, 640×480 color display screen with high-grade delicate show. 2. It possesses advanced algorithms angle programming functions which helps it program quickly and conveniently. 3. The built-in PLC logic brings greater flexibility and stability. 4. It owns the upper and lower mould library. 5. This E210 CNC system can store 100 programs, each of which has 25 steps (E200 has 40 programs).

KV S525

Features: 1. It adopts monochrome 5.7" LCD display (320×240 pixel). 2. This system can automatically check fill-out-form programming mode timely and automatically calculate the bending and compensation force. 3. All procedures, moulds and parameters can be saved in the machine's internal memory or U disk. 4. It provides programming function of the control shaft and other auxiliary functions. 5. This system can control three axes.

KV S540

Features: 1. It adopts LCD 10.2 "TFT color display and SVGA anti-radiation. 2. Interactive 2D graphics editing and mould inputting are employed in this system. 3. It has functions of 3D display of workpiece, mould and machine framework. 4. The four manual 2D graphics is used to set the optimum bending sequence. 5. The system adopts similar WINDOWS operation mode. It adopts forms to program the shaft position and features simple operation. This system can automatically check and calculate the R-axis, X-axis and bending tonnage. 6. The preset standard PC keyboard is optional for customers. 7. It possesses user-defined alarm function.
