Description

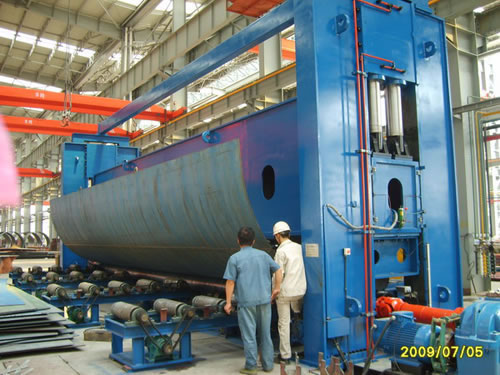

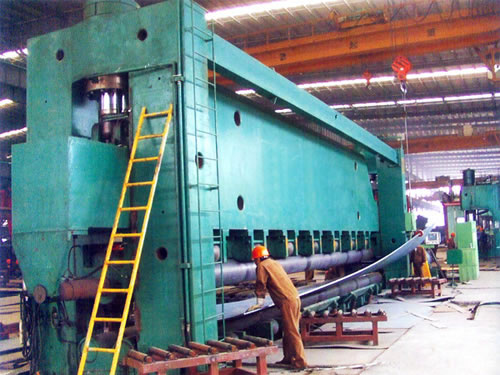

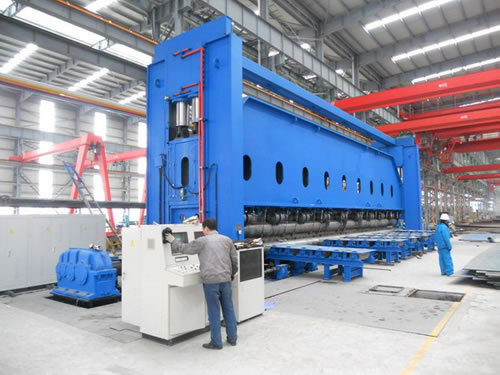

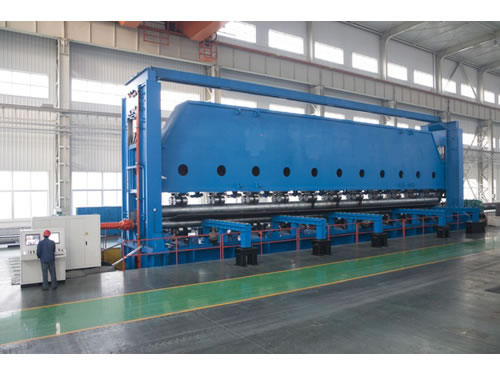

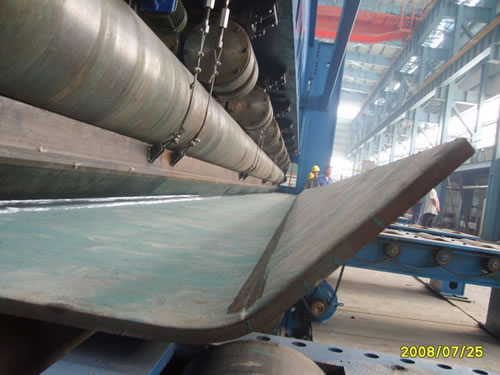

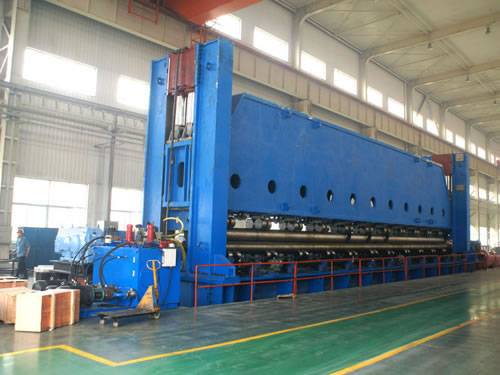

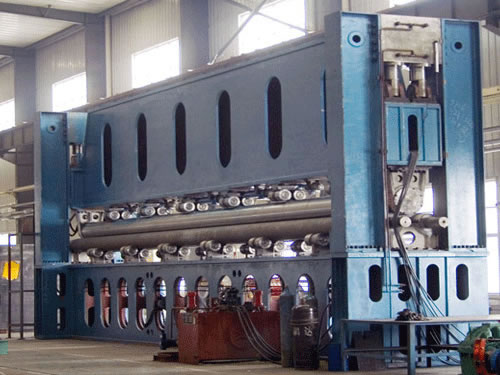

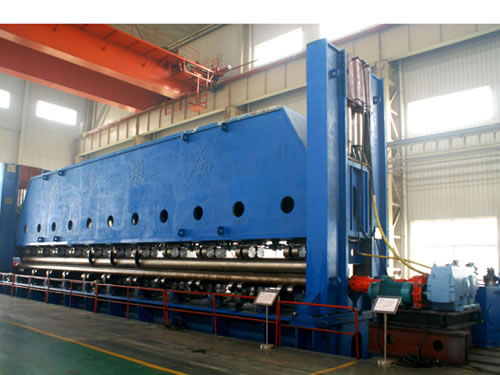

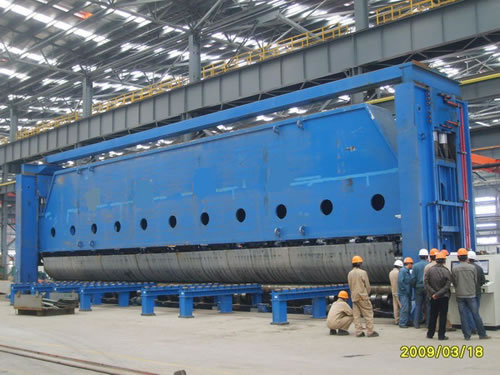

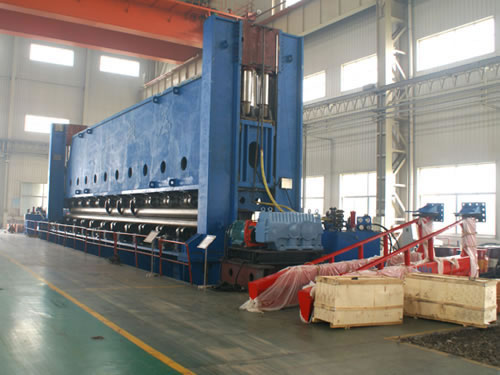

Marine plate rolling machine is applicable to super wide arc-shaped parts. This marine plate bending machine adopts three-roller symmetricalstructure. The top roll moves vertically on the symmetrical central position of the two lower rolls. The rolling equipment's two bottom rolls do rotational movement providing torque to the rolling sheet. There are sets of carrier rollers at the bottom of the two lower rolls in order to improve the rigidity of the lower rolls. There is a rigid beam at the top of the marine plate bending machine's upper roll. Multiple sets of carrier rollers are between the beam and the upper roll, which can improve the rigidity of this rolling equipment's upper roll.
Features of Marine Plate Rolling Machine
-
Marine plate bending machine is designed with full enclosure to prevent dust form entering.
-
This rolling equipment adopts steel welded structure with high rigidity. It also adopts computer finite element analysis method to optimize the design calculation. The two ends of the shaft roller adopt adjustable ball bearings.
-
Marine plate bending machine features convenient maintenance, high efficiency, long service life and good environmental protection effect.
-
Marine three roller symmetric rolling equipment changes the oil splitting phenomenon of domestic three roller bending machines. The overall appearance has reached the international level.
-
The console adopts humanization design with easy and convenient operation.
-
The marine plate bending machine uses electric centralized control. The operation is simple and convenient.
-
This rolling equipment has support roll to support the two lower rolls. This can improve the rolling work-piece accuracy and the machine performance as a whole.
-
There is a centralized lubrication system in this machine.
Technical Parameters of Marine Plate Rolling Machine
|
Model
|
Max.
Rolling Thickness
(mm)
|
Max.
Rolling Width
(mm)
|
Plate
Yield
Limit(Mpa)
|
Motor
Power
(kw)
|
|
W11-20×8000
|
20
|
8000
|
245
|
45
|
|
W11-25×12000
|
25
|
12000
|
245
|
55
|
|
W11-30×12000
|
30
|
12000
|
245
|
75
|
|
W11-30×16000
|
30
|
16000
|
245
|
110
|
|
W11-40×18000
|
40
|
18000
|
245
|
2×75
|
|
W11-40×21000
|
40
|
21000
|
245
|
2×75
|
