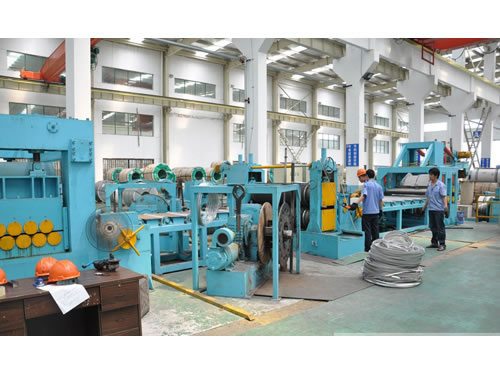

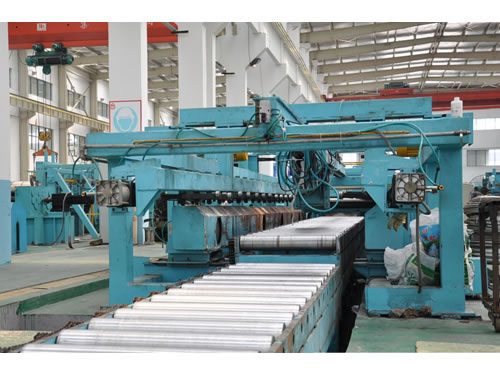

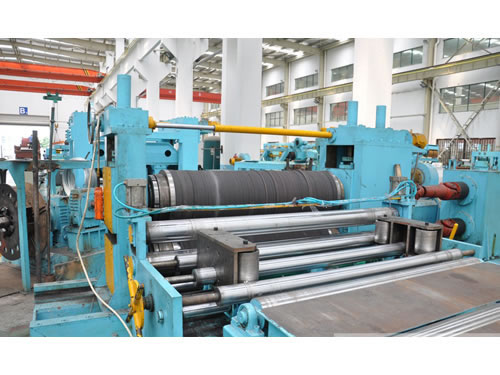

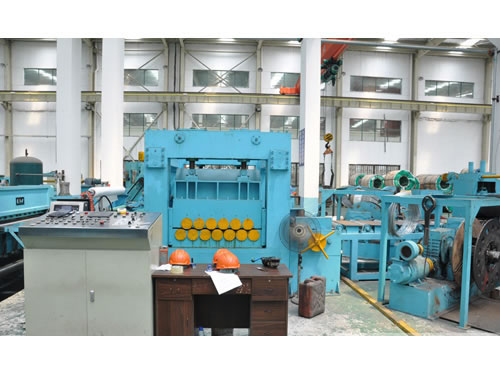

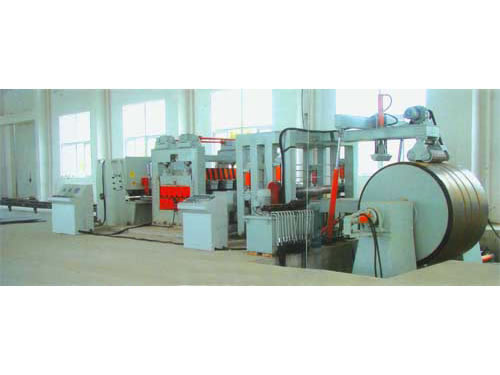

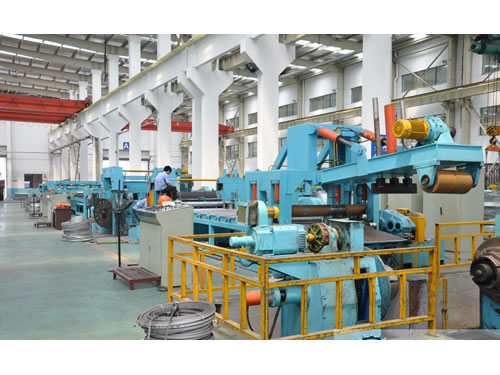

Description
The medium plate cut-to-length production line is applicable for leveling and cut-to-length of medium thickness hot-rolled carbon steel, low alloy steel, stainless steel and other industrial coils. The transverse shearing line adopts human-computer interface with touch screen. This cutting equipment also adopts PLC and servo control technology to ensure high-speed precision and easy operation of this cut-to-length production line.
Main Parts
This transverse shearing line mainly consists of hydraulic feeding car, decoiler, hydraulic lead feeder, rough straightening machine, transition workbench, correction institution, leveling unit, shear, palletizing platform, hydraulic system, electrical control system, and so on. At the same time, our company can configure bead cutter, slitting cutter and side wire rolling machine to obtain a four-trimming board or the slitting shear along the length of the steel plate. The cut-to-length production line adopts British Eurotherm DC digital control system for control. This transverse shearing line features high degree automatization, good leveling quality, high shearing precision, high production efficiency, stable and reliable performance, convenient operation and maintenance, etc.
Specifications
The feeding, leveling, shearing and stacking of this medium plate cut-to-length production line are automatically adjusted. This cutting equipment adopts PLC control technology and touch screen as the human-computer interface. Operators can input the dimension and number of sheets. Besides, the touch screen can set the feeding speed and manual or automatic control. The feeding length and number can also be fixed. This transverse shearing line also has alarm function for abnormality.
Technical Parameters of Medium Plate Cut-To-Length Production Line
Item
|
Unit
|
Available Range
|
|
Thickness
|
mm
|
1~6, 2~8, 2~10, 3~12, 4~16
|
|
Standard Plate Width
|
mm
|
1250, 1500, 2000, 2500
|
|
Uncoiler Load
|
t
|
15, 30
|
|
Leveling Precision
|
mm/m2
|
1.5, 2.0
|
|
Fixe-Length Precision
|
mm
|
±1.0
|
|
The Highest Line Speed
|
m/min
|
~75, ~85, ~100
|
|
Total Power
|
kw
|
75~200
|
HB Machinery is a professional manufacturer and supplier of medium plate cut-to-length production lines in China. In addition to this transverse shearing line, we also provide rolling machine, leveling machine, shearing machine, press brake, profile bending machine, etc. Due to our products' high quality, professional service and competitive price, our cutting equipment are well received by customers all over the world.
