Description

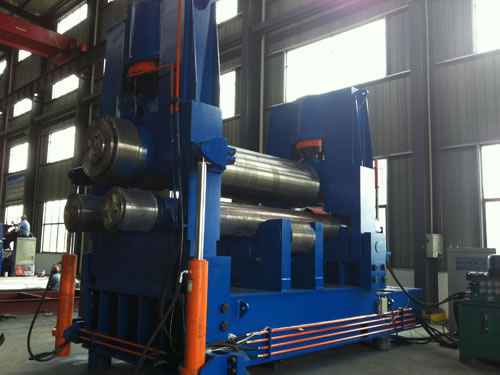

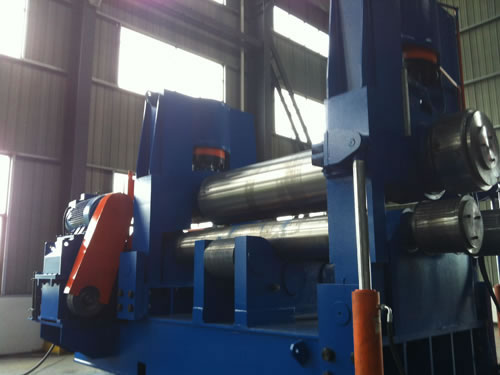

Upper roller universal plate rolling machine, also called upper roll universal rolling machine, is a kind of universal three roller special bending machine. It is often used in bending steel plates into barrel shape, arc shape or conical shape. The upper roller can move vertically as well as horizontally. It can finish the pre-bending work and coiling work at the same machine without any auxiliary device. The upper roller is designed in drum-type, so it has anti-deformation function. The upper roller universal plate rolling machinery (upper roll universal rolling machine) is equipped with carrier rollers under the lower rolls which can help to improve the coiling precision. The lower rolls are fixed symmetrically deployed relatively to upper roll. Upper roll ascends or descends at the central symmetric location of the lower rolls. The movement of upper roll is PLC controlled and LCD display is employed for displacement. This upper roller universal plate rolling machinery (upper roll universal rolling machine) is broadly used in petroleum, chemical, cement, shipbuilding, boiler, aviation, water conservancy, power transmission tower and other machinery and equipment manufacturing industries.
Main Parts

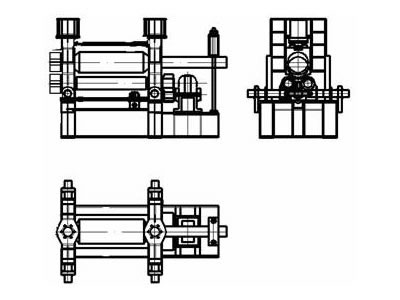

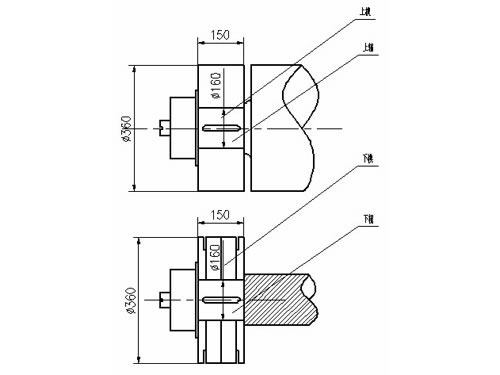

The main structure of upper roll universal rolling machine includes substructure, overturned side rack, fixed side rack, work roll, main gear, upper roll mobile device, overturn device, profile mould, hydraulic system, electric control system and other components.
Technical Parameters of Multifunctional Plate Rolling Machine
|
Model
|
Pressure on the Upper Roller
|
Roll Capacity
|
Diameter of Upper Roll
|
Diameter of Lower Roll
|
Central
Distance
|
Main Motor (kw)
|
End
(mm)
|
Central
(mm)
|
|
W11S-10×1500
|
37
|
8
|
10
|
205
|
135
|
180
|
4
|
|
W11S-12×2000
|
65
|
10
|
12
|
250
|
145
|
200
|
5.5
|
|
W11S-16×2500
|
100
|
12
|
16
|
300
|
165
|
270
|
11
|
|
W11S-20×3000
|
160
|
16
|
20
|
375
|
200
|
330
|
18.5
|
|
W11S-25×2500
|
190
|
20
|
25
|
380
|
220
|
360
|
18.5
|
|
W11S-30×2500
|
230
|
25
|
30
|
410
|
235
|
380
|
22
|
|
W11S-35×3000
|
320
|
30
|
35
|
500
|
260
|
420
|
37
|
|
W11S-40×3500
|
430
|
35
|
40
|
550
|
275
|
460
|
45
|
|
W11S-45×2500
|
430
|
40
|
45
|
520
|
275
|
460
|
45
|
|
W11S-50×3500
|
540
|
45
|
50
|
630
|
340
|
610
|
55
|
|
W11S-55×3000
|
610
|
45
|
55
|
620
|
360
|
650
|
55
|
|
W11S-60×4000
|
760
|
50
|
60
|
780
|
380
|
700
|
75
|
|
W11S-65×3000
|
760
|
55
|
65
|
700
|
380
|
700
|
75
|
|
W11S-70×4000
|
1000
|
65
|
70
|
820
|
440
|
820
|
75
|
|
W11S-75×3500
|
1000
|
65
|
75
|
780
|
440
|
820
|
75
|
|
W11S-80×3000
|
1000
|
70
|
80
|
770
|
440
|
820
|
75
|
|
W11S-90×4000
|
1350
|
80
|
90
|
910
|
480
|
920
|
90
|
|
W11S-100×3000
|
1250
|
85
|
100
|
820
|
480
|
920
|
90
|
|
W11S-110×3500
|
1400
|
95
|
110
|
940
|
520
|
1000
|
110
|
|
W11S-120×3000
|
1600
|
100
|
120
|
900
|
520
|
1000
|
110
|
|
W11S-140×3000
|
2200
|
120
|
140
|
960
|
620
|
1200
|
75×2
|
HB Machinery is a professional manufacturer and supplier of upper roller universal plate rolling machines in China. In addition to this upper roll universal rolling machine, we also provide two roller bending machine, three roller plate bending machine, cone bending machine, symmetrical plate bending machine, asymmetrical bending machine, oil and gas pipe bending machine, marine plate bending machine, vertical bending machine, etc. Our upper roller universal plate rolling machineries are well received by customers all over the world.
