Description

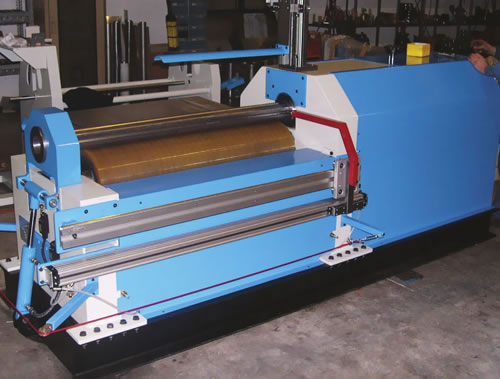

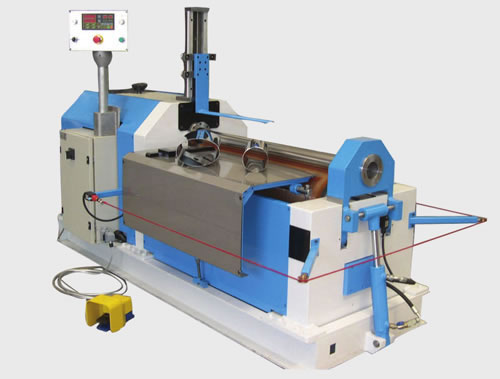

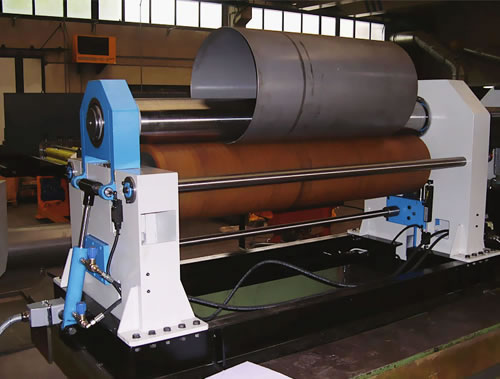

Two roller plate rolling machine is a new kind of plate bending machine. It has a top roll (upper roll) and a lower roll (bottom roll). The top roll is a rigid steel roller and the lower one is flexible and rubber-coated. The flexible roller is close to rigid roller to make the deformed work piece become qualified shape. During operation, we should feed the plate between the two rollers and then adjust the distance of the two rollers. Our two roller plate rolling machines are flexible so that their plate surface can not get wear and tear early. The obvious merit for this plate bending machine is without pre-bending and trimming. It can roll into various shapes, such as circular, elliptical, conical and customized shapes.
Features
1. The productivity of this two roller plate rolling machine is more than 4000 pieces per day.
2. This kind of plate bending machine has no damage to metal sheet.
3. Punched, engraved or pierced plate may be rolled without deformation.
4. Rolling materials range from the softest to the hardest.

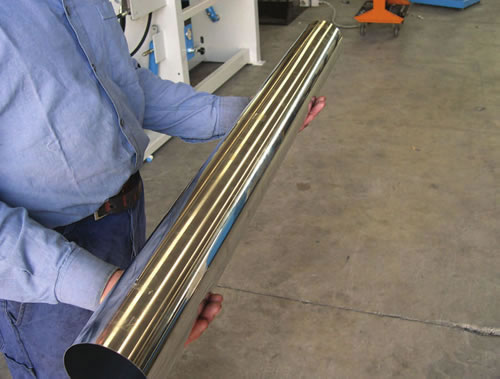

5. High precision pipes, tubes and cylinders can be rolled on this rolling machine.
6. This plate bending machine has simple structure with only two rollers. The two roller plate rolling machine is easy to operate and realize auto operation with high efficiency.
Main Standard Parts
|
Title
|
Positioning
|
|
Axletree
|
ZWZ
|
|
Main Electrical Components
|
Schneider
|
Hydraulic
System
|
Pump
|
HCHC
|
|
Valve
|
Yuken
|
Digital
Display
System
|
Touch Screen
|
DELTA
|
|
PLC
|
DELTA
|
|
Transducer
|
OMRON
|
Operation of Two Roller Plate Rolling Machine
-
First, add the hydraulic oil into the fuel tank.
-
Second, connect the power, start the pump motor and ensure that the rotation direction is correct.
-
Turn on auto manual switch on the control box and remove the steel sleeve in the driven shaft.
-
The feeding platform position should be adjusted properly.
-
Select the required rolling size mould, rolling die and sleeves on the driven shaft according to the parameters of plate bending machine (rolling machine).
-
Finally, turn on the control switch automatically, and then you can start rolling.
-
Remove the workpiece after rolling.
Maintenance
-
In order to keep two roller plate rolling machine dry, the talcum powder could be sprinkled on the rubber roller.
-
The oil on the plate must be rubbed off.
-
The regular lubrication work is necessary for the lubrication parts of this plate bending machine.
After-Sale Service
-
The warranty time for HB two roller plate rolling machine is one year.
-
Within the warranty time, we will reply within 24 hours if there is any big failure.
-
Our company can provide free service for repair and maintenance for this plate bending machine during the warranty time.
-
Any spare part for clients' rolling machine is available in our company. The changed parts' warranty will be from the date when they are changed.
